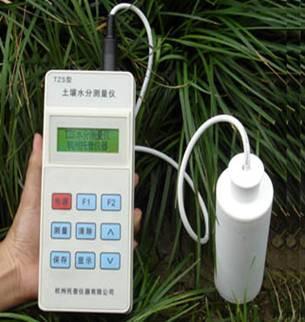

Name: Soil Moisture Tester；Model: TRS
Detailed product Description:
►The soil moisture is the soil important constituent to crops' growth, saves water, the irrigation a and so on. By the GPS posit ioning system know the moisture content and accurately indicate the soil moisture available to your plants. So that irrigation can be effectively scheduled according to the plants requirements.
► Large-screen Chinese liquid crystal display, thin film-type button, can be real-time display of water value, group number, low-voltage warning
►TRS and TRS-II-based Windows software: data download and storage, storage files
can be imported directly EXCE
|
Model
|
TRS-Ⅰ
|
TRS
|
TRS-Ⅱ
|
|
Moisture units
|
%(m3/m3)
|
|
Moisture content of the test range
|
0-100%
|
|
Test time/ Precision
|
≤2 second / ≤2%
|
|
Probe working Temp
|
-10℃—70℃
|
|
Water Stored datum/Power
|
2000 Groups / Four No.5 Batteries
|
|
The standard cable length
|
1700mm(option, max length 100M)
|
|
Size of probe
|
Stainless steel probe:80mm, total length of probe 205mm
|
|
Function
|
the ordinary type, direct measurements showed that soil water content value, has data storage capabilities (2000 group), directly stored in the host computer.
|
RS-232 interface with the computer communications, a dedicated data download software, direct measurement of soil water, with real-time storage of moisture content, as well as connect the computer to export the data, software have the function of storage and printing (software free) .
|
Besides the function of TRS, it add GPS locate function, Test soil moisture content, meanwhile the measuring point can be measured accurate information (longitude, latitude),real-time show the location of sampling point information, and will be storage the location, moisture, data etc. information in the host, can also be transport by computer
|
Name: Soil nutrient rapid tester
；Model: TRY
Detailed product Description:
►Can detect the soil, plants, chemical fertilizer, biological fertilizer, etc. of the
available nitrogen, available phosphorus, available potassium, total nitrogen, total
phosphorus, total potassium, organic matter content, soil pH and soil salinity.
►Time-display function can be realized automatically detect the timing of the recording and prese r vation of samples
►Samples testing results automatically transferred to the computer on, implementation analysis, agg regation,
retention, memory, 60 kinds of crop nutrient requirements for growth and development capacity; by the
computer storage for data storage, remote transmission, printing (TPY-6PC)
|
Model
|
TRY-6
|
TRY-6A
|
TRY-6PC
|
|
Soil component tester
|
Stable: A value less than 0.003/3min, Repeat: A value ≤ 0.005
Precision: ≤3.0%, Sensitivity: red light ≥4.5×10-5 blue light≥3.17×10-3
Length of wave: red light620±8nm blue light 440±8nm, Earthquake resistance: Qualified
|
|
PH tester
|
1. Test range: 1~14；2. Precision: ±0.1
|
|
Salt content measurements
|
Test range: 0.01%～1.00%, Precision: ±5%
|
|
Power
|
180-240V 50HZ
|
|
Function
|
Measurable indicators: available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, organic matter content, soil pH and soil salinity (quantitative), with storage, printing
|
Besides the function of TRY-6, 70 kinds of crops growth and development in lieu of the required amount of fertilizer nutrient formula software, it could be output the guidance of fertilizer by users need and print them out.
|
Besides the function of TRY-6 and TRY-6A, In addition to the host computer is equipped with micro-printer outside. Can also be stored by a computer for data storage, remote send and print.
|
